Laboratory,Turbidimeter,HF,Scientific,Micro 100

Laboratory Turbidimeter HF Scientific Micro 100

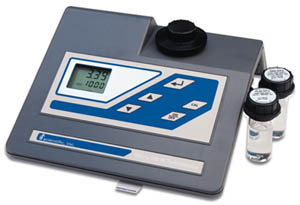

Micro 100 Laboratory Turbidimeter
STANDARD FEATURES:
Auto Ranging 0 - 1000 NTU
Instrument senses turbidity level of sample and automatically adjusts to the appropriate measurement.

Auto Alert Calibration Prompt
Automatically prompts the operator when calibration of the instrument is needed.

Simple Calibration Procedures
Calibration initiated with the push of a button ensures accurate readings.

RS-232 Output
Date, time, and NTU reading can be captured with a serial printer or data recorder.

Made in the USA

OPTIONAL FEATURES:
Infrared Light Source (Micro 100IR)
Meets international standard ISO 7027 for turbidity measurement.

Pour-through assembly
Save time by pouring your grab sample through the measurement chamber.

Reusable Calibration Standards
Quick and easy calibration across all ranges without the need to mix Formazin.

SPECIFICATIONS
Principal of Operation: Nephelometric non-ratio
Range: Auto ranging from 0 - 1000 NTU
Accuracy: ± 2% of reading plus 0.01 NTU
Resolution: 0.01 NTU (0 - 9.99 NTU) 0.1 NTU (10 - 99.9 NTU) 1 NTU (100 - 1000 NTU)
Response Time: < 6 seconds
Sample Size: 30 ml (27ml minimum)
Light Source: Quick connect Tungsten Filament or Infrared Operating
Temperature: 32° - 122°F (0° - 50°C)
Outputs: RS-232 Serial Port
Dimensions: 10.75 x 10 x 3.75 inches (27.3 x 25.4 x 9.5 cm)
Weight: 2.9 lbs. (1.32 kg)
Safety rating: UL, CSA, CE

Laboratory,Turbidimeter,HF,Scientific,Micro 100

Designed to provide the accuracy demanded by today's scientist, the Micro 100 Laboratory Turbidimeter is ready to meet the challenge. Features like the Auto Alert Calibration Prompt and the Quick Connection Lamp Module, allow for simple calibration and low maintenance. With a resolution of 0.01 NTU at low turbidity readings and an extended range to 1,000 NTU, the Micro 100is an ideal and affordable tool for research as well as routine analytical measurements.


Optional pour through assembly

Note: The Micro 100meets performance criteria specified by USEPA method 180.1 for NTU measurement and ISO7027 (IR version).

Literature and Specifications
Operator's Manual

Micro 100 Instruments and Accessories

Catalog Number
Description
Instruments
20001 Micro 100 White Light Laboratory Turbidimeter, 110V,  60Hz
19950 Micro 100 White Light Laboratory Turbidimeter, 100 - 240V, Universal Power 50 - 60Hz
19951 Micro 100 Infrared Laboratory Turbidimeter, 110V, 60Hz
19952 Micro 100 Infrared Laboratory Turbidimeter, 100 - 240V, Universal Power 50 - 60Hz
Note: All four of the above include a complete set of calibration standards (0.02, 10, and 1000 NTU), two measuring cuvettes with light shield caps, and an operator's manual. The 110V, 60Hz instruments include a 110 VAC power adapter. The 100 - 240V, 50 - 60Hz instruments include a universal power adapter that operates at any voltage between 100 - 240 VAC.
Accessories
19786 Batteries, Lithium 2/pk.
19785 Cable RS-232
19961 Calibration Set, IR (0.02, 10 and 1000 NTU)
19957 Calibration Set, White Light (0.02, 10 and 1000 NTU)
62017 Calibration Standard, IR (10 NTU)
62018 Calibration Standard, IR (1000 NTU)
19825 Calibration Standard (10 NTU)
19831 Calibration Standard (1000 NTU)
50052 Cuvette 28 x 70mm 10/pk. (replaces 28 x 93mm) Use for grab sample. Includes ten threaded light shield caps.
50051 Cuvette 28 x 70mm 3/pk. (replaces 28 x 93mm) Use for grab sample. Includes threaded light shield caps.
19981 Cuvette Stand for storing empty cuvettes as well as calibration standards; holds up to 11 cuvettes.
50040 Formazin Stock Solution Kit. Each kit contains 32 ounces of 4000 NTU Formazin, one gallon 0.02 NTU water, one 0.02 NTU Reference Standard, four cuvettes with indexing light shields, three pipettes, and an instruction manual.
22155 Instruction Manual (White light and IR)
19975 Pour through Assembly. Includes the assembly, locking ring, 24" of drain tubing, cuvettes and instructions.
60002 Reference Standard 0.02 NTU complete with indexing light shield.
19972 Replacement Lamp Module (White Light)
