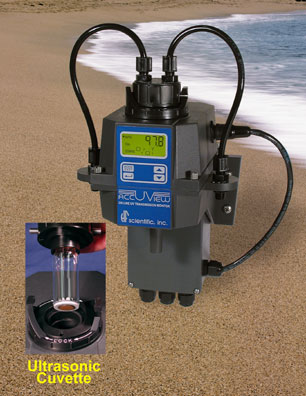

AccUView UV %Transmission Analyzer From HF Scientific

With over 30 years of optical design expertise HF scientific has developed the AccUView OnLine UV %Transmission Analyzer specifically for drinking water disinfection monitoring.  Engineered using leading edge Microprocessor technology the AccUView is the most reliable and cost efficient instrument for monitoring the %transmission of a UV Disinfection System for drinking water.  Standard features include simple calibration procedures, a bubble rejection system and an Ultrasonic Cleaning System designed to reduce operator maintenance time.

By far the most advanced, reliable and cost effective instrument for OnLine %Transmission Monitoring.  Invest in the best at an affordable price without sacrificing quality.

AccUView,UV,%Transmission,Analyzer,HF,Scientific

Each unit includes PrimeTime Standard 100%T, Cuvette with Ultrasonic Transducer and operator's manual.




STANDARD FEATURES:

Low Maintenance Fail Safe Design:
Simple Modular Design. Automatic cleaning reduces time consuming maintenance.

Affordable:
Modular microprocessor based technology ensures high quality at the industry's lowest price.

Autoclean:
Ultrasonic cleaning continuously cleans the sample cell ensuring accurate and reliable readings.

Communications:
Communications include 4-20mA output with isolator or Optional RS-485 with Modbus Protocol.

Certified Standards:
HF scientific inc. certifies the PrimeTime 100%T Calibration Standard is prepared as outlined in Standard Methods for the Examination of Water and Wastewater, 20th Edition, Method 1080 A-C, Methods for Preparation of Reagent Water.

Made in the USA

Optional Features:
Remote Display
Allows remote monitoring up to 500 feet away.


Literature and Specifications
Full Five Page Specifications
Operator's Manual
AccUView Modbus Manual

SPECIFICATIONS
Range: 0 - 100% Transmission ( Auto Ranging)
Resolution: 0.1%T
Repeatability:

± 0.1%T

Wavelength: Ultraviolet 253.7nm
Response Time: User Selectable updates from 4 - 60 seconds
Operating Temperature: 0° - 50°C (32° to 122°F)
Standard Outputs: 4-20 mA with isolator or Optional RS-485 with modbus protocol
Alarms: 2 User selectable high / low alarms
Pressure/Flow Rate:

Maximum 200 psi/1000ml per minute

Built in Regulation Provided

Calibration: PrimeTime 100%T Standard Certified
Enclosure: Nema 4X, IP66
Display: Multiline Custom LCD with backlight
Security Code: Prevents Unauthorized access
Built in Diagnostics: Yes
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Wetted Surfaces: Nylon, Quartz, Silicon, Polypropylene, Stainless Steel
Outdoor Installation: 32°F to 122°F (0°C to 50°C) (Protective enclosure required)
Certifications: CE, ETL (UL), ETLC (CSA)
Dimensions: 14"x12"x12" (35cm x 30cm x 30cm)
Shipping Weight: 2.72 kg (6 lbs.)
Electrical: 100 - 240 Volts, 50/60 CPS, 80VA

AccUView OnLine UV %T Instrument and Accessories

Catalog Number  Description
  Instruments
19577

AccUView OnLine UV %Transmission Analyzer

Each unit includes 4-20mA with isolator, two alarm contacts, inline flow regulator, desiccant, power supply, PrimeTime Standard 100%T, Spare cuvette with Ultrasonic Transducer and operator's manual.

  Accessories
19609 Remote display, for an additional digital readout up to 500 feet away

19851A RS-485 output with Modbus Protocol (Factory Installed)
24232S Cuvette (Quartz), with Ultrasonic Transducer
21555R Desiccant Tray - Refill
21062 Tubing Kit - Includes: Tubing, fittings, shut off clamp, back pressure valve and drainvent
24235S Electronic Service Module AccUView
24165S Flow Through Assembly, Nylon (does not include cuvette.)
20106 Stilling/Bubble Chamber
01957 UV Lamp Service Module - Exchange
19323 100% T PrimeTime Standard - 500ml
70908 100% T PrimeTime Standard - 1 gallon
20779S Power Cord 120VAC/240VAC
